DYKB 2.4Ghz 2W WiFi Bluetooth VCO RF Generator Signal Source 2W Power For 2.4Ghz BT Headset Music Speaker Wifi Camera

Note:

If you don't know how to use it Please refer to our advertising video . Very clear about the function . We cannot guarantee that 100% Bluetooth can prevent it .

The antenna must be plugged in first. Otherwise, the power amplifier will be burned out due to the excessive standing wave. And the antenna frequency must be matched

major function

Connect the antenna and DC 12V 2A power supply The work indicator light is on.The frequency near 1-20 meters will prevent for Open space.. only support 2.4G frequency Single device . Does not support dual frequency ..For example, your WIFI is 2.4G 5.8G or 2.4G 5.2G

We can only guarantee 100% 2W power . BUT cannot guarantee working distance.The distance depends on many factors, such as using an antenna or the environment. antenna defaults to 8dB

PS: if long distance is required, please use directional antenna : about interference distance 0-20M Open space..

Directional Antenna link

https://www.aliexpress.com/item/1005008473879767.html

Specifications:

+12V power supply;

Working current: 1.3A;

Frequency range: 2400-2483MHz;

Output power 33dBm;

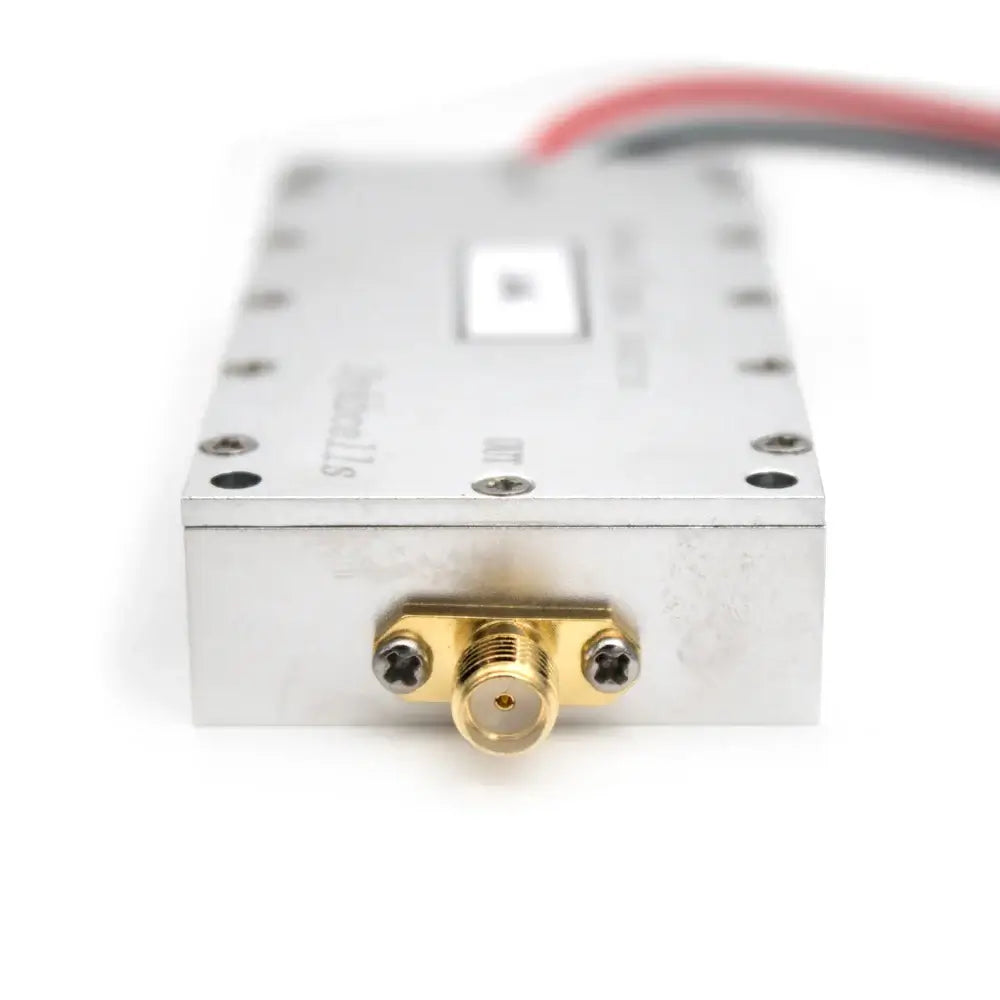

Output interface: SMA female head;

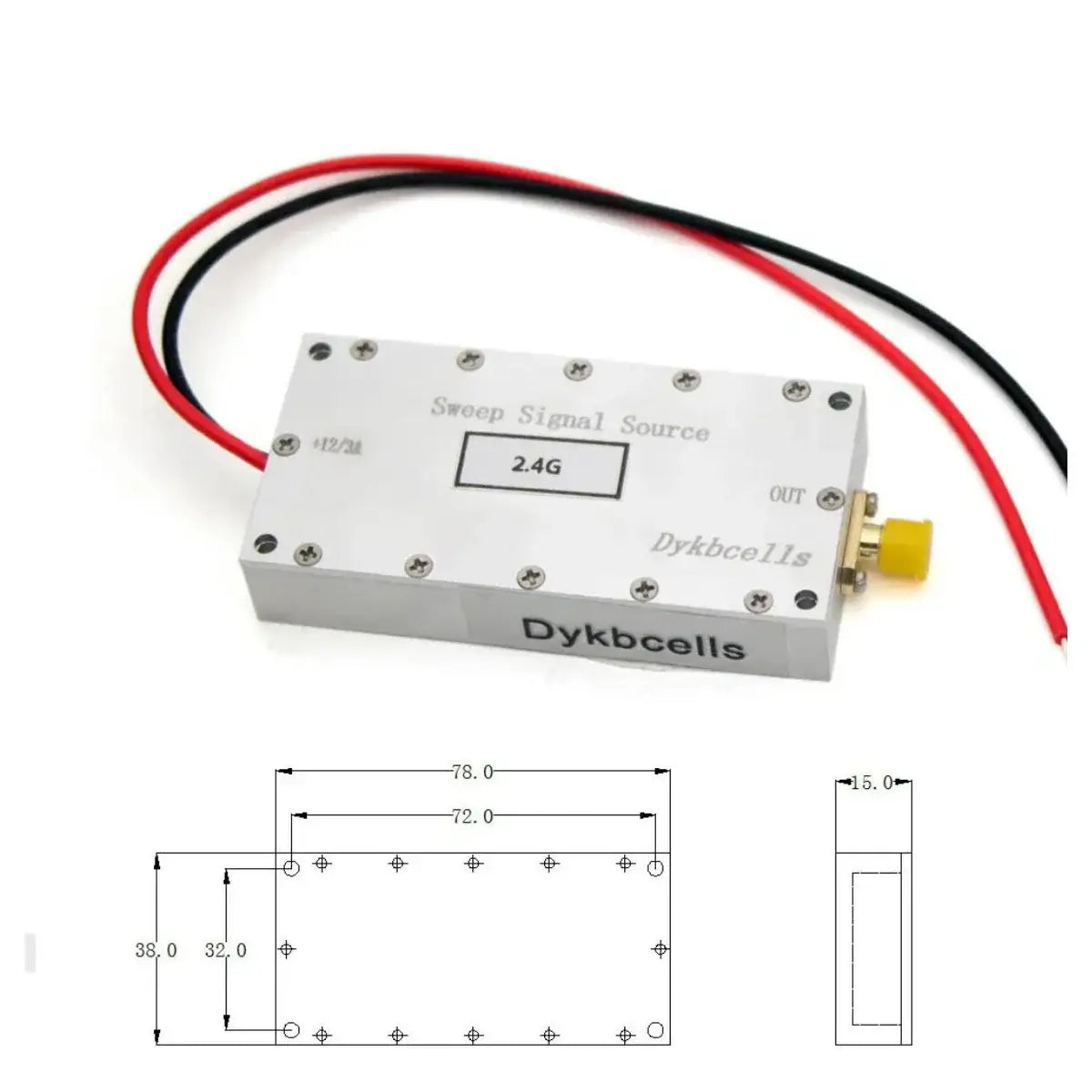

SIZE: 78X38X15MM

CNC casing

Long working hours need to install heat dissipation equipment;

Installation steps and methods

First, insert the 2.4G antenna

Place in an open area to avoid metal obstruction;

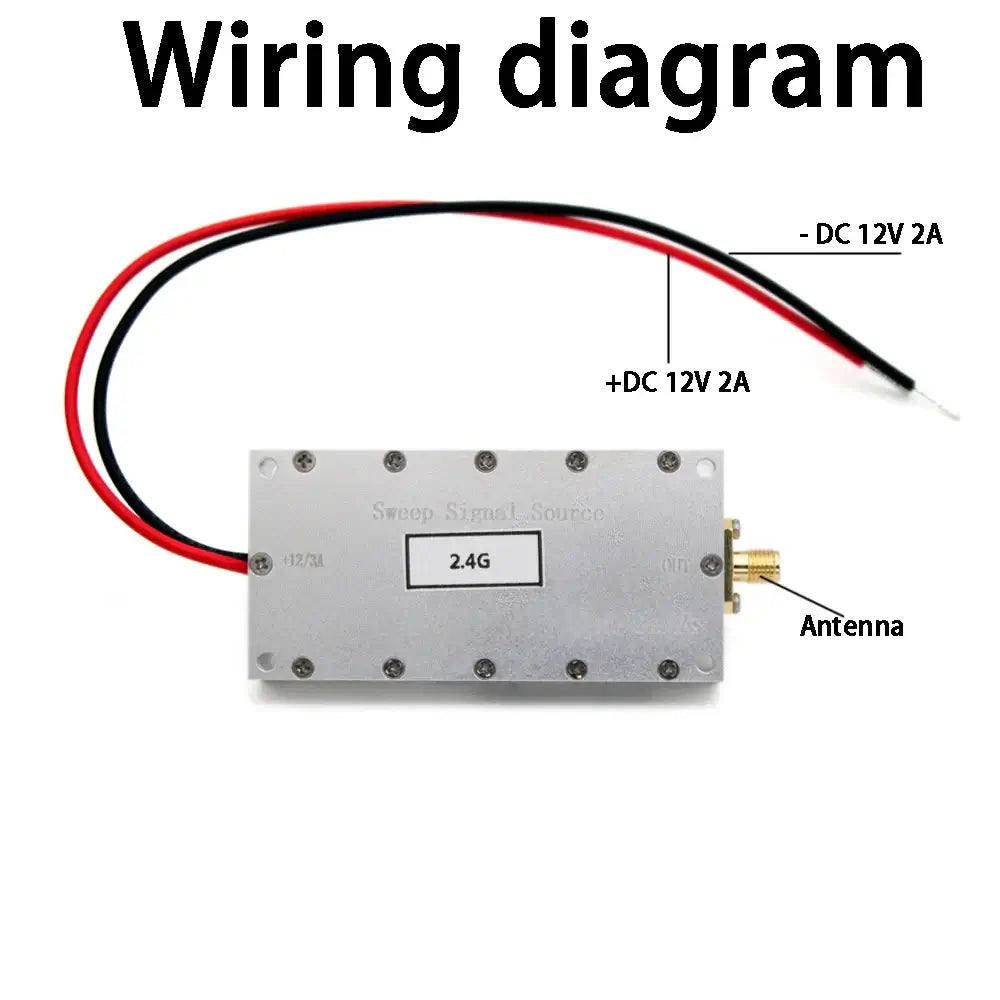

Connect the module to a+12V power supply, red:+12V, balck:-

Ensure correct wiring After connecting the antenna, turn on the power and let the module work;
